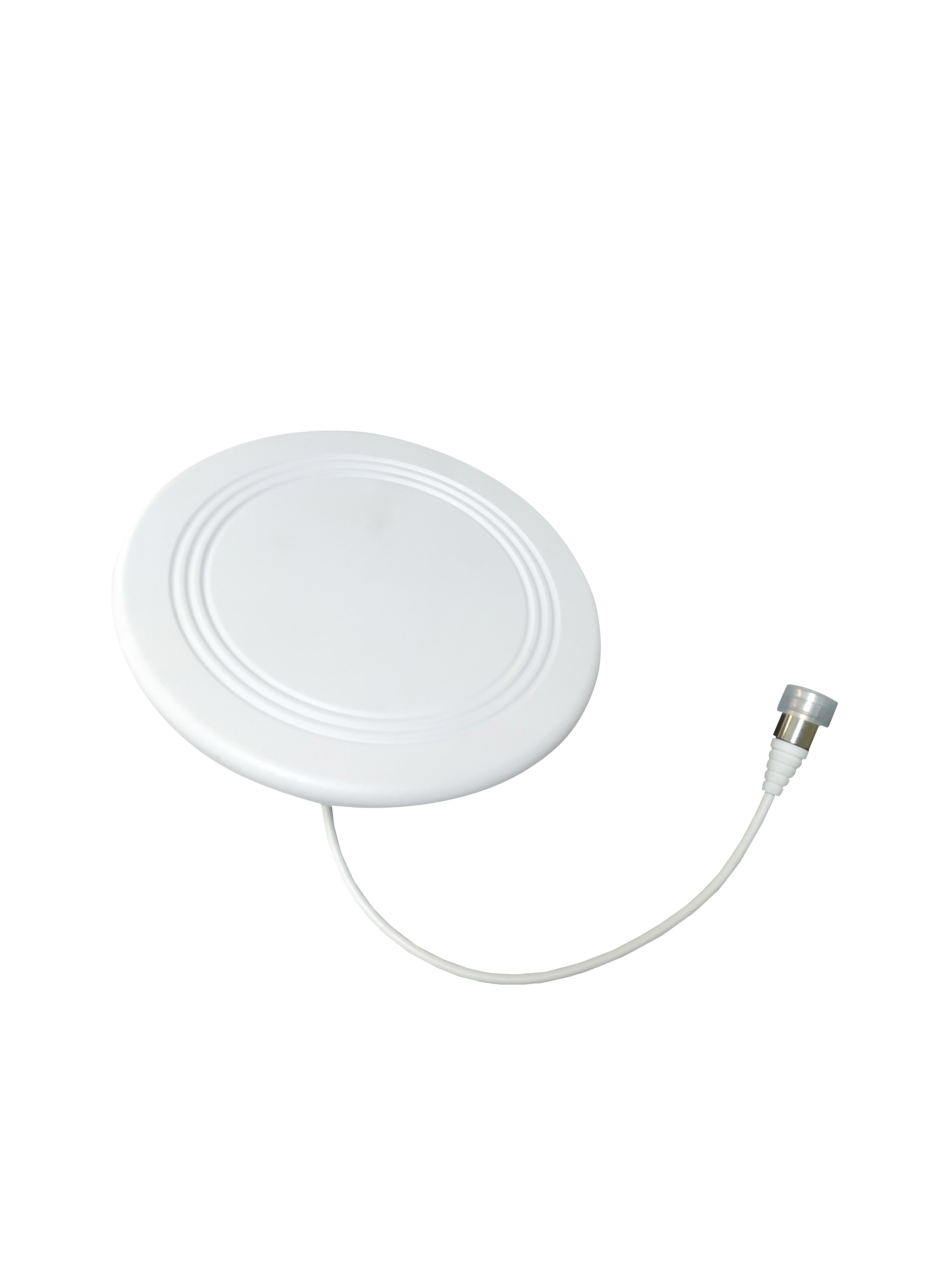

Ultra Slim 617-4000MHz SISO Omni-Directional Antenna
Ultra Slim 617-4000MHz SISO Omni-Directional Antenna
Model:
WBNK-DAS0640H04i360A
Applications
❶ Supporting 2G/3G/4G LTE/ 5G network
❷ Typically used in indoor distribution of signal coverage
❸ Improves in building wireless network coverage and capacity
❹ Indoor wireless networks and Cellular networks
Features
❶ Low PIM ≤-150dBc @ 2 x 43dBm
❷ Low profile neutral housing
❸ High quality ABS radome with plastic nut for easy installation
❹ Attractive, compact design and form factor ideal for Indoor distributor antenna system
WBNK-DAS0640H04i360A
Applications
❶ Supporting 2G/3G/4G LTE/ 5G network
❷ Typically used in indoor distribution of signal coverage
❸ Improves in building wireless network coverage and capacity
❹ Indoor wireless networks and Cellular networks
Features
❶ Low PIM ≤-150dBc @ 2 x 43dBm
❷ Low profile neutral housing
❸ High quality ABS radome with plastic nut for easy installation
❹ Attractive, compact design and form factor ideal for Indoor distributor antenna system
Ordering Information
Antenna Patterns
Electrical Specifications
Mechanical Specifications
Installation Methods (Ceiling OR L-Bracket )
| Part Number | 3rd Order IMD Standard | Descriptions | ||
| WBNK-DAS6140H05i360A | ≤-150dBc @ 2 x 43dBm (RG141 coaxial able) |
N-Female Connector | ||
| WBNK-DAS6140H05i360A/4310 | 4.3-10 Female Connector | |||
| WBNK-DAS6140H05i360A/716D | 7/16 DIN Female Connector | |||
Antenna Patterns
Electrical Specifications
| Frequency Range | 617-960MHz | |||
| 1710-2700MHz | ||||
| 3200-4000MHz | ||||
| Gain (Typ) | 3dBi @ 617-960MHz | |||
| 4dBi @ 1710-2700MHz | ||||
| 5dBi @ 3200-4000MHz | ||||
| VSWR (Typ) | < 1.8 @ 617-960MHz | |||
| < 1.5 @ 1710-4000MHz | ||||
| PIM, 3rd Order, -dBc (Max) | ≤-150dBc @ 2 x 43dBm | |||
| Polarization | Linear, Horizontal | |||
| Horizontal Beamwidth | Horizontal: 360° | |||
| Vertical Beamwidth | 85° @ 698-960MHz | |||
| 55° @ 1710-2700MHz | ||||
| 40° @ 3200-4000MHz | ||||
| Impedance | 50 Ohm | |||
| Max. Input Power | 50 Watts | |||
Mechanical Specifications
| Cable Length | 30 cm - RG141 series | |||
| Connector | 4.3-10 Female | |||
| Weight | 0.23 Kg | |||
| Dimensions | Φ 179 x 8 mm | |||
| Packing Dimensions | 195 x 195 x 75 mm | |||
| Radome Material | ABS | |||
| Radome Color | White (RAL 9003) | |||
| Operating Temperature | -40°C to +60°C | |||
Installation Methods (Ceiling OR L-Bracket )
