Features
❶ Offer True FarField read zones
❷ Easy Installation hidden
❸ No surface dead zones
❹ Low VSWR at 1.3 with available cable extension
Descriptions
The WBN-FF/RFID(US)4020 NearField Pro antennas are explicitly designed for applications, which require “Far zone only” tag detection or involves metals, liquids or any other challenging materials. With almost any far-field components and no surface dead spots, this FarField Pro antennas provide reliable tag reads within a flexible read zone depends on input power of reader
Thanks to our unique antenna design, which scales easily in size, this FarField Pro antenna
series offers Four dimension. If you require a different surface, please tell us

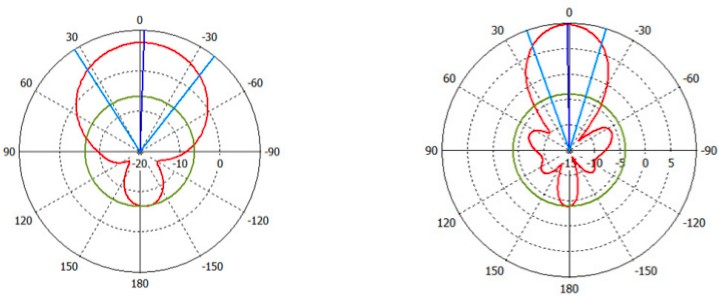

Radiation Pattern Dimension |
|
|
Mechanical Specifications
Cable Length |
30cm Cable |
Connector |
SMA-Male/Female (Optional) |
Weight |
0.41 Kg |
Dimensions |
400 x 200 x 14 mm |
Radome Material |
PCB |
Radome Color |
Black/White/Green/Blue (Optional) |
Electrical Specifications
Frequency Range |
902-928MHz |
Gain |
9dBi |
Polarization |
Circular |
VSWR (Typ) |
< 1.3 |
Axial Ratio |
≤3dB |
Horizontal Beam-Width |
40° |
Vertical Beam-Width |
70° |
Max. Input Power |
50 Watts |
Impedance |
50 Ohm |
Lightning Protection |
DC Grounded |
The following are our standard far field antenna
Model No. |
Antenna Dimension - mm |
Gain - dBi |
WBN-FF/RFID(US)1010 |
101x 101 x 10mm |
4dBi |
WBN-FF/RFID(US)1919 |
190 x 190 x 16 mm |
8dBi |
WBN-FF/RFID(US)2020 |
200x 200 x 14mm |
7dBi |
WBN-FF/RFID(US)2511 |
250 x 110 x 20mm |
4dBi |
WBN-FF/RFID(US)3419 |
340 x 190 x 09mm |
5.5dBi |
WBN-FF/RFID(US)3030 |
300 x 300 x 20mm |
10dBi |
WBN-FF/RFID(US)3434 |
340 x 340 x 20mm |
9dBi |
WBN-FF/RFID(US)3730 |
370 x 300 x 20mm |
9dBi |
WBN-FF/RFID(US)3520 |
360 x 200 x 21mm |
10dBi |
WBN-FF/RFID(US)3535 |
350 x 350 x 20mm |
9dBi |
WBN-FF/RFID(US)4008 |
400 x 80 x 25mm |
5dBi |
WBN-FF/RFID(US)4020 |
400 x 200 x 14mm |
9dBi |
WBN-FF/RFID(US)4620 |
460 x 200 x 14mm |
9dBi |
WBN-FF/RFID(US)6040 |
600 x 400 x 25mm |
14dBi |
WBN-FF/RFID(US)6819 |
680 x 190 x 20mm |
11dBi |
